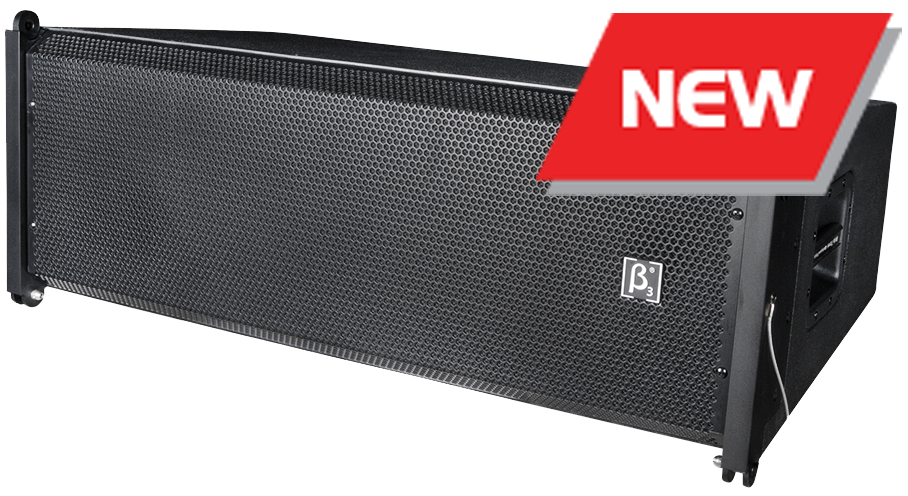

TLA 2.12F/Special
Mô tả sản phẩm:
Dual 12" Two way Weatherproof Line Array Speaker
T-Line Weatherproof Line Array is composed by a dual 12" full range element TLA 2.12F/Special and a suspend-able dual 15" subwoofer TLB 2.15W/Special. Compact construction, light weight and quick installation makes the system most suitable for outdoor touring performance applications.
T-Line Weatherproof Line Array Speakers were designed in accordance with IP54 Standard, mainly be applicable for outdoor touring performance.
The adjacent speakers can achieve the seamless coupling and form the consistent cylindrical wave. The adjustable angle between two adjacent speakers is 0°-30°.
Magnetic circuit of LF is optimized through the finite element analysis to achieve the ultra-low distortion and maximum clarity under the high SPL. Overheated protection for drivers, perfect and reliable circuit protection.
TLA 2.12F/Special adopts multifunctional structure design and Russian birch, weatherproof polyurethane painting provides super strong weather resistance.
Tính năng và cấu hình:
- Dual 3" Neo compression driver.
- Dual 12" Neo woofer.
- Long term continuous power: LF 500W, HF 100W.
- Dispersion: Horizontal 110 , Vertical 0° x 30°
- Frequency response: LF 90Hz-4kHz (-3dB), HF 900Hz-15kHz(-3dB)
- Sensitivity: LF 102dB, HF 110dB.
- Max SPL: LF 126dB/132dB(PEAK), HF 130dB/136dB(PEAK).
- Overload protection is available.
- Appropriate hanging frame with shackle for installation.
Nội dung:
| Frequency Response(-3db): | LF: 50Hz-4kHz; HF: 900Hz-16kHz | |
| Acoustical specifications | Max SPL @ 1m: | LF: 126dB/132dB(PEAK); HF: 130dB/136dB(PEAK) |
| Dispersion (H x V): | 110° x 0-30° | |
| Transducers | Compression driver: | 2 x 3" Neo compression driver |
| Woofer: | 2 x 12" Woofer | |
| Input/Output section | Input Connectors: | 2 x NL4 @ LF:1+ 2- HF: 3+ 4- |
| Sensitivity (1W @ 1m): | LF: 102dB; HF: 110dB | |
| Processor section | Crossover frequencies: | 1.6kHz-2.5kHz |
| Power section | Total Power: | LF: 500W, HF: 100W(RMS); LF: 1000W, HF: 200W(MUSIC); LF: 2000W, HF: 400W(PACK) |
| Nominal Impedance (Ohm): | 8Ω | |
| Cabinet/Case Material: | Russian birch | |
| Hardware: | Appropriate frame with 3/4"shackle | |
| Physical specifications | Handles: | 2 x Wooden handles |
| Grille: | weather resistant polyurethane finish, black powder coating for grille. | |
| Color: | Black | |
| Size | Dimension (W x D x H): | 965 x 630 x 380mm / (38 x 24.8 x 15in) |
| Package Dimensions (W x D x H): | 700 x 440 x 1080mm / (27.6 x 17.3 x 42.5in) | |
| Weight | Net Weight: | 41 kg / 90.4 lb |
| Gross Weight: | 46.5 kg / 102.5 lb |
