TL 2.12F
Mô tả sản phẩm:

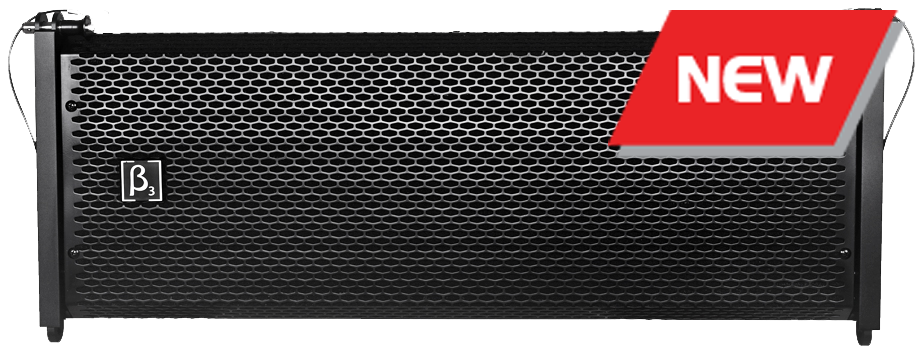

Dual 12" 2-way Line Array Speaker
The Beta Three® TL 2.12F is a compact 2-way bass-reflex line array speaker specially designed for touring applications that require superior sound and intelligibility. It comes with 2 x 12" high-efficiency woofers and 1 x 1.7" coaxial neodymium compression driver and delivers 400W RMS, 1600W peak power output. With a special flying frame, the inter-cabinet angle for the TL 2.12F is adjustable from 0° to 10°. Along with the TL 2.15W subwoofer, the entire line array system can be ground-stacked, suspended, or mounted. Altogether, they perform superior sound at an unmatched value for various applications.
Tính năng và cấu hình:
- High quality birch plywood cabinet
- High SPL output and sensitivity
- 2 x 10" high power LF woofers
- 1 x 1.7" coaxial neodymium compression drivers
- Adjustable inter-cabinet angle from 0° to 10°
- 1600W peak power output
- Suitable for use as a main system with or without sub speaker augmentation
- Perfect line array solution arrayed with TL 2.15W subwoofer
- Multiple installations ranging from ground-stacked, suspended, or mounted
Nội dung:
| Frequency Response(-3db): | LF:50Hz-4kHz HF:260Hz-20kHz | |
| Acoustical specifications | Max SPL @ 1m: | LF:132dB MF/HF:129dB |
| Dispersion (H x V): | 100° x 80° | |
| Transducers | Compression driver: | 1 x 1.7" HF |
| Woofer: | 2 x 12" LF | |
| Input/Output section | Input Connectors: | 2 x NL4 |
| Sensitivity (1W @ 1m): | LF:100dB HF:105dB | |
| Power section | Total Power: | LF: 400W MF/HF : 70W |
| Nominal Impedance (Ohm): | 8Ω | |
| Cabinet/Case Material: | 15mm Plywood | |
| Physical specifications | Handles: | 2 x Wooden handles |
| Grille: | Cabinet coated by Polyurethane paint; grille is powder coated | |
| Color: | Black | |
| Size | Dimension (W x D x H): | 965 x 630 x 380mm / (38 x 24.8 x 15in) |
| Package Dimensions (W x D x H): | 705 x 445 x 1085mm / (27.8 x 17.5 x 42.7in) | |
| Weight | Net Weight: | 43 kg / 94.8 lb |
| Gross Weight: | 48.3 kg / 106.5 lb |
