CNX 306A

Đưa chuột vào hình để xem

Tài liệu liên quan:

Mô tả sản phẩm:

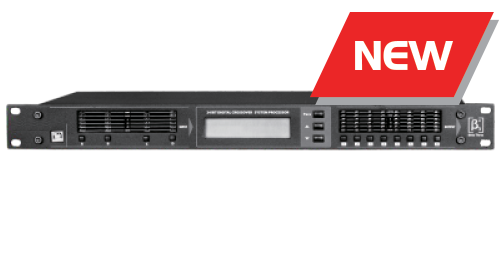

The CNX 306A are the 1U integrated professional digital cinema speaker management processor. This device are easily programmable to meet all professional digital cinema installation applications


Tính năng và cấu hình:
  • 32bit high performance floating point DSP and 24bit 192K sampling rate AD/DA chip for better dynamic processing and high-fidelity restore capability
  • Maximum delay is 500ms for each signal3-way balanced analog signal input, 6-way balanced analog signal output
  • Crossover: Bessel/Butterworth 12/18/24/30/36dB per octave and Linkwitz-Riley 12/18/24dB per octave
  • Both input mute and output mute available
  • Store maximum 50 set of customized programs
  • USB connectors for cascade of multiple processors
Nội dung:
Frequency Response 20Hz 20KHz, 0.5dB
SNR 110dB
THD <0.006%
Input Connector 3-Way,XLR-3
Output Connector 6-Way Phoenix
Input Impedance >10kΩ
Maximum Input +20dBu
A/D Transverter >64kHz
Output Impedance <47Ω
Power Supply AC 200V~240V/50-60Hz
Dimensions(WxDxH) 482 x 228 x 45mm
Packaging Dimensions(WxDxH) 515 x 335 x 50mm
Net Weight 5.7kg
Gross Weight 6.5.0kg
