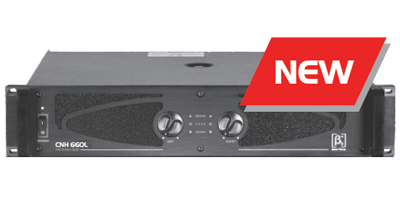

CNH 660L

Đưa chuột vào hình để xem

Tài liệu liên quan:

Mô tả sản phẩm:

CNH 660L is the amplifier with big power and excellent performance. It can meet different audio avenues.


Tính năng và cấu hình:
  • Big power,dynamic energy;
  • Innovative heat sink structure and high quality heat sink fan assure reliable working for a long time;
  • “Loading impedance temperature-power-running voltage" can be controlled alternately , Speed of Fan is automatic adjusted by temperature. When load is too low or temperature is too high, the equipment can adjust the power supply and lower impedance of power, which improves sound quality and protect the equipment better. The reliability will be improved remarkably;
  • Low distortion;
  • High slew speed, outstanding sound quality and high transparent;
  • Low noise:S/N>108dB( A Weight);
  • 20Hz~20KHz <+0/-0.25 dB;wide frequency band;
  • Small dimension, 2U rack mounting.
Nội dung:
Frequency Response(-3db)     20Hz~20kHz(+0/-0.25dB)
THD     <0.05%(10%Rated power)
  Stereo Mode 300W
Rated Powe   400W
  Bridged Mono Mode 600W
    800W
Intermodulation Distortion     <0.1%(60Hz/7kHz,10%Rated power)
Damping Factors     >600(8Ω/100Hz)
Segregation     >108dB
S/N     >108dB(A-Weight)
Total Gain     31.2± 0.5dB
Difference of Channel Gain     <0.25dB
Input Sensitivity     1V
Slew Speed     >40V/μ s
Input Impedance     Unbalanced input 10kΩ,Balanced input 20kΩ
Power Supply     AC 220V/50~60Hz,500VA
Dimensions(WxDxH)     483 x 375 x 88mm
Packaging Dimensions(WxDxH)     533 x 454 x 148mm
Net Weight     13.5kg
Gross Weight     15.5kg
