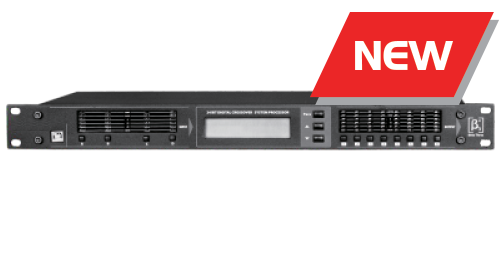

CNC 408A

Đưa chuột vào hình để xem

Tài liệu liên quan:

Mô tả sản phẩm:

The CNC 408A are the 1U integrated professional digital cinema speaker management processor. This device are easily programmable to meet all professional digital cinema installation applications


Tính năng và cấu hình:
  • 32bit high performance floating point DSP and 24bit 192K sampling rate AD/DA chip for better
  • dynamic processing and high-fidelity restore capability
  • Parametric EQ ( 5-band for input, 7-band for output)
  • Maximum delay is 2.6s for each signal4-way balanced analog signal input, 8-way balanced an alog signal output
  • Crossover: Bessel/Butterworth 12/18/24/30/36dB per octave and Linkwitz-Riley 12/18/24dB per octave
  • Both input mute and output mute available
  • Store maximum 50 set of customized programs
  • USB/RS485 connectors for cascade of multiple processors
Nội dung:
Frequency Response 20Hz 20KHz, 0.5dB
SNR 110dB
THD <0.006%
Input Connector 4-Way,XLR-3
Output Connector 8-Way Phoenix
Input Impedance >10kΩ
Maximum Input +20dBu
A/D Transverter >64kHz
Output Impedance <47Ω
Power Supply AC 200V~240V/50-60Hz
Dimensions(WxDxH) 482 x 228 x 45mm
Packaging Dimensions(WxDxH) 515 x 335 x 53mm
Net Weight 5.7kg
Gross Weight 6.5.0kg
