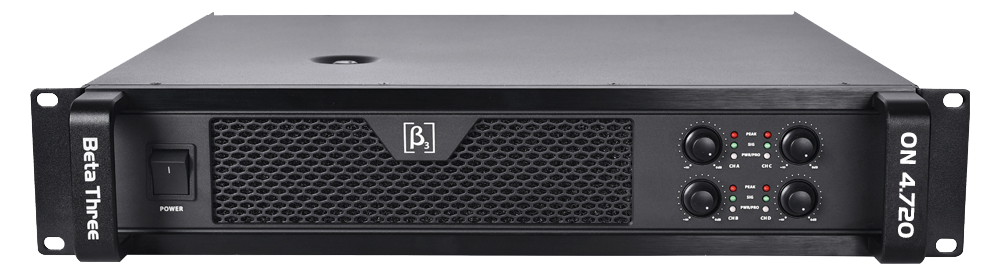

ON 4.720

Đưa chuột vào hình để xem

Tài liệu liên quan:

Mô tả sản phẩm:

The On Series is a series of multi channel professional power amplifiers, it was entirely designed with the target of outstanding reliability. Designed with the basis of efficient and safe thermal distribution structure, concise and matured output circuit, and complemented by precise detection and protection control. In particular, the innovative design of the automatic temperature control system and the unique limiting function both contribute to the high efficiency of product performance.



Tính năng và cấu hình:

Product feature
1. Various power levels can be matched according to your application.
2. Three input sensitivity options provide flexible matching with different systems.
3. With three input LINK switches, the input terminals of adjacent channels can be flexibly used to simplify the input wiring of large applications.
4. The output will not be distorted even if the input signal is too large, because of the unique limiting function in place. In particular, it has two limiting modes to choose from when matching with different types of loudseakers.
5. High power supply system and efficient output level can provide strong output capability.
6. The centralized air duct and heat management and the precise temperature control with zero temperature differnce, help ensure the all components can effectively coordinate in hear dissipation. It also ensures that all heat sources in the equipment can operate in an orderly and reliable manner within the safe range.
7. Accurate and intuitive status indicator and independent volume knob, which makes working status and operations easily controllable.

Nội dung:

Model

On 4.720

Power

8ꭥ

1000W/CH

4ꭥ

1500W/CH

Input Sensitivity

32dB Switchable

THD

%@8ꭥ, 1kHz

IMD

< 0.5% @ 8ꭥ 60Hz/7kHz 4:1

Frequency Response

20Hz – 20kHz ± 2dB

Damping Factor

>  500 @ 8ꭥ, 100Hz

Cooling

Dual Cooling Fan Controlled by Temperature

S/N radio 8ꭥ, 1kHz, 32dB A weighting

>  105 dB





7A



Rated power supply

220 – 230 ~ 50/60Hz

Temperature

Working Temperature -10°C ~ 40°C Storage temperature -25°C ~ 80°C

Input Connector

4x XLR

Output Connector

Link in output

1x TRS

Power Output

4x NL4

Dimension

89mm x 482mm x 380mm (Include Rack 405mm)

Net Weight

20kg
